desiccant dry cabinet for IC PCB BGA BGA storage CE UL approved

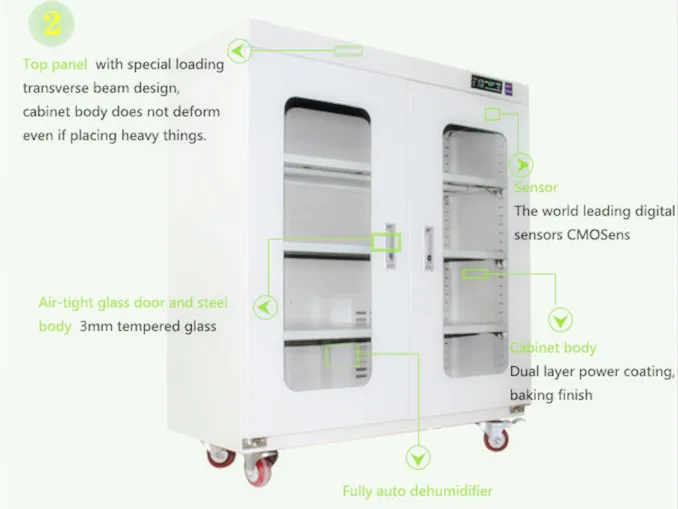

Drying Cabinet For Electronic Component

Cubage: 320L

Shelf Quantity: 3
Outside dimensions:W900*D450*H1010mm
Inside dimensions:W898*D422*H848mm

1. Zinc alloy lock with plus pressure capability.
2.   Using advanced powder coating technology with Dupont powder, high anti-erosion performance, and the surface powder coating has acquired ROHS certification, then which can avoid your stored goods from pollution.
3.   AC power 85V~265V 50/60Hz.
4.     High intensity truckle with brake

5. Anti-ESD powder coating is available for choosing, but the color is dark green.

6. LED display, the humidity sensor is made by Honeywell Relative humidity error is ±3%RH
7. Using 1mm and 1.2mm cold rolled plate of bao steel, reinforcing structure design, high intensity bearing, every shelf can bear over 80kg goods.
8. Using 3.2mm toughened glass.

Package size: W99*D54*H120CM
Gross weight: 77KG

Net weight: 54KG

Product Specifications Model:

Product Name	Model	Humidity control range	Control mode
Antistatic humidityElectronic Cabinets	YS-320F	20%-60%RH	Can be set
Low humidity AntistaticElectronic Cabinets	YS-320BF	10%-20%RH	Automatic

Product Specifications Model:

Product Name	Model	Humidity control range	Control mode
Humidity Electronic Cabinets	YS1430-6	20%-60%RH	Can be set
Low humidityElectronic Cabinets	YS1430B-6	10%-20%RH	Automatic
Ultra-low wetElectronic Cabinets	YS1430C-6	1%-10%RH	Automatic
