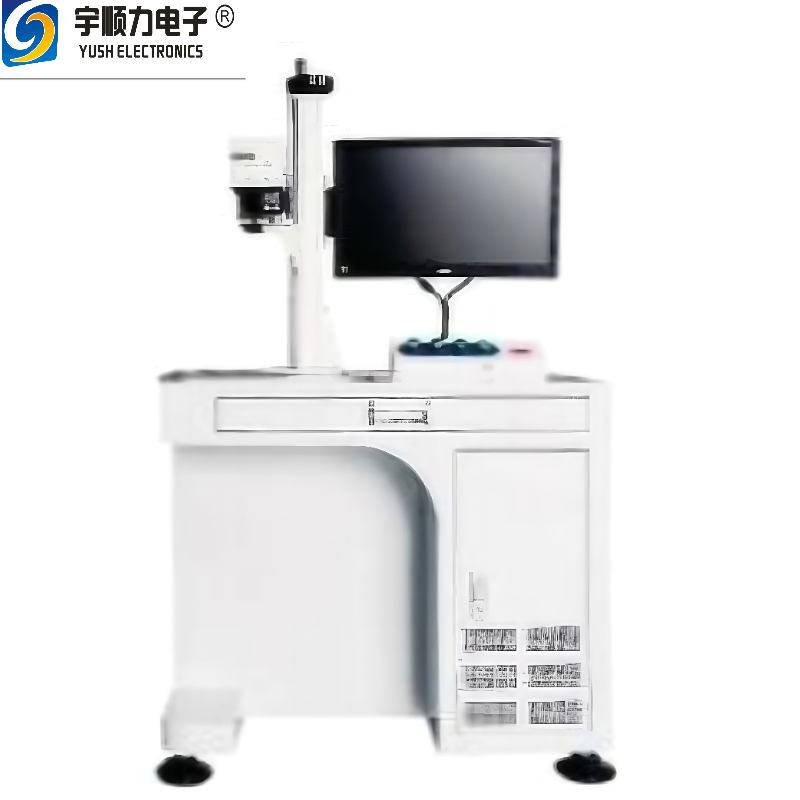

Product Features
The FA series of fiber laser marking machines encompasses all the applications of the FL series, and in addition to the FL series, it also incorporates wide and narrow pulses. By using different pulse widths, it enables the processing of materials to achieve multiple colors during the marking process. The wide and narrow pulses of the FA series lasers are independently controlled, and they possess excellent laser characteristics and excellent pulse shape control capabilities.
Technical Specification
Model | YS-FA |
| laser wavelength | 1064nm |
| laser power | 20/30/50/60/80/100W |
| frequency range | 1-1000KHz |
| Pulse width range | 2-250ns |
| Marking speed | ≤7000mm/s |
| minimum line width | 0.02mm |
| Minimum character | 0.05mm |
| repeatability | ±0.1µm |
| Marking range | 150mm*150mm(optional) |
| Cooking mode | air cooling |
| working power supply | AC220V/50Hz |
 |
 |
