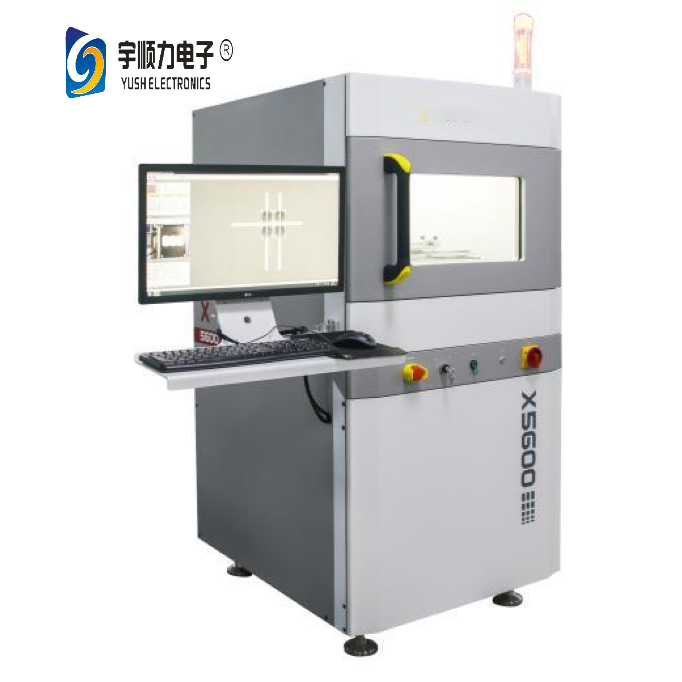

X-Ray Solution YSL-X5600 X-Ray Solution YSL-X5600 Microfocus X-Ray Inspection machine

Applications:

Workbench

Model

Specifications

Work Size

Machine Dimension W.D.H

Net Weight

Double Tables

YSVC-600-AS

Standard Type

350*350mm

1382*1056*1500mm

840KG

Double Tables

YSVC-600AW

Widened

500*500mm

1682*1356*1500mm

940KG

Functions and Features:

Function

Advantages

X-ray detector can move along Z direction,

Speed of table moving along X-Y direction can be adjusted.

Larger effective detection range, improving the magnification and the detection

efficiency of the product.

Long life X-ray tube, maintenance free for life

Adopt the world's top Japanese Hamamatsu X-ray source

Fault less than 2.5 μm can be detected. High detection repeat accuracy.

Easy to distinguish the gold wire bending  and break of the semiconductor package.

Powerful CNC Measuring Function, can

inspect automatically, testing program can be edited.

Suitable for large-scale inspection and improve detection efficiency.

Small body, easy to place, less space

Can be used in laboratories, materials rooms, etc.

Large navigation view, table will move to where you click the mouse.

Very easy to operate, quickly find item    defects and improve detection efficiency



Application Advantage:

1.Miniaturized equipment, easy to install and operate

2. Applicable to Chip, BGA/CSP, Wafer, SOP/QFN, SMT and PTU packaging, Sensors and other fields products inspection.

3.High resolution design to get the best image in a very short time.

4.Infrared automatic navigation and positioning function can select the shooting location quickly.

5.CNC inspection mode which can quickly and automatically inspect multi-point array.

6.lined multi-angle inspection makes it easier to inspect sample defects.

7.Simple softwareoperation, low operating costs

8.Long lifespan
